Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates
HAOYO stiff boom cranes are suitable equipped on the deck for bulk cargo ships or
offshore with enough free space. The crane installed with lifting winches. As lack of
hydraulic cylinder on the boom, the crane can’t extend and folded. But for its simple
structure, compare to the knuckle boom crane and telescopic crane, it’s price and
maintenance cost is the lowest.The cranes are available in the range from 140–30000 kNm
lifting moment and are supplied according to customer requirements. The most notable
features include: Stiff bow free booms with the dexterity for accurate, safe, and efficient
material handling.Stiff boom cranes are typically used in dock, on fixed installations
and in harbor conditions.
Please provide following necessary information,so we can quote right Model crane.
1. Crane SWL requested
2. Max. working radius of the crane
3. The crane is for hose handling or normal cargo
4. The crane will be used on ship, offshore plantform or fixed plantform (motor 380V
or 440V)
5. If you have any other special request for the crane, please advise us
Drawing of Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane
Technical Parameters of Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane
| Crane Type | Outreach(m) | Lifting capacity(kg) | Lifting Moment
(kNm) | Total Moment (kNm) | Pedestal Outer Diameter (mm) | Slewing (Angle °) | Operating Pressure (bar) | Dead Weight (kg) |
| HC 2700 | 1.5-5 | 1745-500 | 25.6-25 | 25.6-25 | 27.2 | 325 | 200 | 230-260 |
| HC4501 | 3.4-11 | 1180-230 | 38.9-24.2 | 44.9 | 450 | 400 | 300 | 560-760 |
| HC6500 | 3.5-9.2 | 1600-480 | 55.7-43.8 | 58.7 | 450 | 400 | 300 | 530-670 |
| HC8500 | 2.5-10.6 | 3450-620 | 85-65.5 | 93.7 | 450 | 400 | 300 | 700-1060 |
| HC8501 | 3.5-13.8 | 2100-250 | 72-33.8 | 79.3 | 450 | 400 | 310 | 810-1230 |
| HC11001 | 3.7-14 | 2550-390 | 93.4-54 | 104.8 | 450 | 400 | 310 | 820-1270 |
| HC12000 | 4-14.3 | 2850-470 | 113-64.3 | 116.6 | 596 | 420 | 300 | 1080-1520 |
| HC15500 | 4-14.3 | 3600-600 | 140.2-84 | 144.1 | 596 | 420 | 300 | 1190-1710 |
| HC18500 | 4.1-14.3 | 4350-940 | 174.1-1 | 196.8 | 620 | 400 | 300 | 1820-2400 |
| HC23500 | 4.1-16.4 | 5400-900 | 217-144.2 | 235.9 | 620 | 400 | 300 | 2190-3230 |
| HC29002 | 4.1-21.1 | 6200-560 | 245.4-115.5 | 282.9 | 620 | 400 | 300 | 2360-2890 |
| HC 32080 | 4-13.7 | 7700-1900 | 299.6-255.5 | 340 | 620 | 400 | 300 | 2740-4065 |
| HC32002 | 4.1-20.4 | 7440-725 | 301-145.6 | 352 | 709 | endless | 300 | 2360-2890 |
| HC41002 | 4.1-20.8 | 9160-1015 | 370.2-207.7 | 431 | 709 | endless | 300 | 2740-4065 |
Quick Details(Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane)
| STANDARDS | OPTIONS |
| Automatic speed control | Radio remote control |
| Low / high temperature operation | Operator’s cabin with fan, heater, wiper and chair etc. |
| Oil return | Standing platform |
| Continuous rotation system | Overload protection |
| Power supply link system | Electric hydraulic power unit |
| Long life surface treatment: anti-corrosion | Winch |
| Structure is sand blasted and metalized | Loading limited device |
| Double primer coat and two layers paint | Cooling system for hydraulic oil |
| Special cylinder for marine environment | Workman basket |
Production Flow(Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane)
Certifications(Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane)
About us (Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane)
1.Professional:Sales & Design department is to create the right type for the customer's
unique requirement. Work staffs in workshop are to ensure the strong structure and good
perform in every detail.
2.Price:We have our own factory,so we can control the cost & delivery time.
3.Service:HAOYO after sales service provides timely and efficient support,both to our
clients and partners.
Contact Details
Miss cindy
Mobile:0086-17521634863
Office Add:No 500,JIANYUN ROAD,PUDONG,SHANGHAI
Factory Add 1:INDUSTRIAL PARK,CHANGSHU,JIANGSU
Facrory Add 2:SOUTH OF SHENG JIANGNAN ROAD PUDONG SHANGHAI
Web:www.haoyogroup.com
|
|

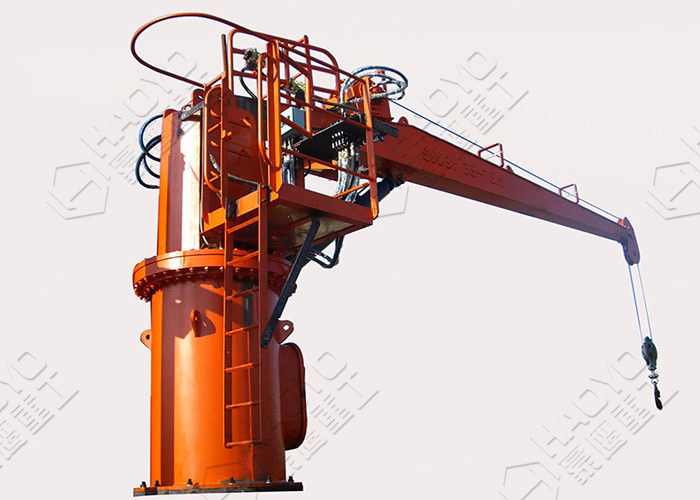

Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane Images
|
