Foldable Telescopic Boom Mobile Favourable Price Port Crane Marine Ship Deck Crane

Name: Foldable Telescopic Boom Mobile Favourable Price Port Crane Marine Ship Deck Crane
Brand: HAOYO
Price: 130000 USD

China Foldable Telescopic Boom Mobile Favourable Price Port Crane Marine Ship Deck Crane wholesale

Brand Name : HAOYO

Model Number : HAOYO

Certification : BV,CCS,ABS,NK,LR,DNV

Place of Origin : China

MOQ : 1set

Price : USD130000/set

Payment Terms : L/C, T/T

Supply Ability : 50set per year

Delivery Time : 100days

Packaging Details : nude

Material : Q345

Color : as required

Use Situation : New

Operation formal : Ground operation

Shipment Packaging : According to The Export Standards

Trademark : HAOYO

Origin : Shanghai

Sling Type : Wire Rope

Type of crane : foldable boom crane

Contact Now

Foldable Telescopic Boom Mobile Favourable Price Port Crane

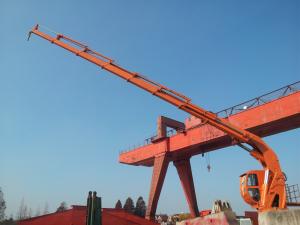

This Offshore Marine Ship hydraulic Foldable Telescopic&Knuckle Boom crane
mostly used on oil tanker and port.the main parts use world famous brands promise
it has perfect performance.which has the function of easy convenient and reliable to
operation,flexible rotation,compact structure,and work very efficiency.

Foldable Telescopic Boom Mobile Favourable Price Port Crane Marine Ship Deck Crane

Drawing

Technical Parameters

MODEL	Outreach (m)	Safety Load(kN)	Lifting Moment(kNm)	Total Moment (r/min)	Pedestal Diameter (mm)	Dead Weight (t)
ECK 150	8.0-12.0	2.1-1.1	132-168	241	885	2.8-3.2
ECK 250	10.0-14.0	2.9-1.8	242-290	381	885	3.7-4.3
ECK 350	12.0-16.0	3.6-2.3	370-430	603	1095	5.3-6.3
ECK 550	14.0-18.0	4.7-3.2	573-660	980	1325	7.8-9.2
ECK 750	14.0-18.0	6.1-4.2	749-855	1375	1490	11.5-12.8
ECK1150	16.0-20.0	7.3-5.2	1040-1160	1765	1490	12.7-14.0
ECK1450	16.0-20.0	9.0-6.4	1268-1440	2555	1770	19.2-23.0
ECK 220	27.5	30,0	2200	4000	1800	25.0
ECK 300	30.0	30.0	3000	5000	2065	27.5
ECK 400	32.0	30.0	4000	6300	2050	30.0
ECK 500	35.0	35.0	5000	8000	2240	35.0
ECK 800	37.0	50.0	8000	11500	2271	55.0
ECK1000	40.0	60.0	10000	14400	2536	70.0
ECK1200	43.0	80.0	12000	18000	2550	100.0
ECK1600	45.0	100.0	16000	34000	3166	150.0
ECK2000	50.0	125.0	20000	44000	3987	200.0
ECK2500	50.0	150.0	25000	50000	4000	220.0
ECK3000	50.0	200.0	30000	60000	4500	275.0

Certifications
Foldable Telescopic Boom Mobile Favourable Price Port Crane Marine Ship Deck Crane
Hydraulic Station

Packaging&Delivery

Shipping details
♦ check all the items and packaged well before loading.
♦ You can check loading or send picture to you.
♦ After shipping make documents for you,like B/L,packing list,voice according
to your requirements.

About HAOYO

1.Professional:Sales & Design department is to create the right type for the customer's
unique requirement. Work staffs in workshop are to ensure the strong structure and
good perform in every detail.
2.Price:We have our own factory,so we can control the cost & delivery time.
3.Service:HAOYO after sales service provides timely and efficient support,both to
our clients and partners.
